SPECIFICATIONS

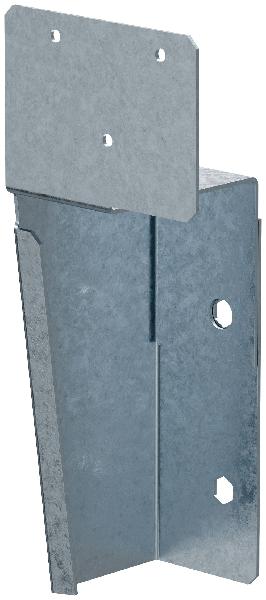

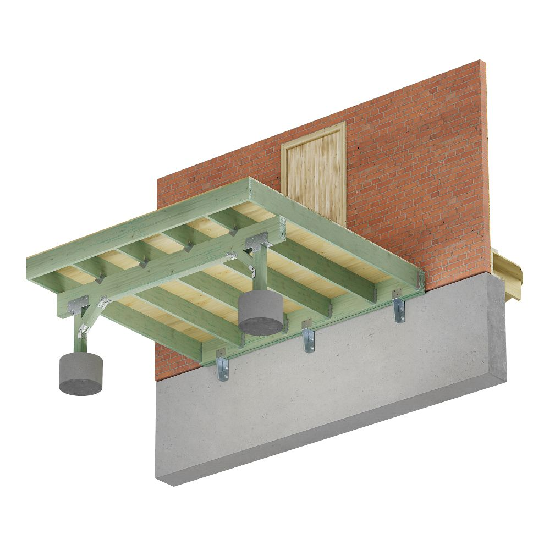

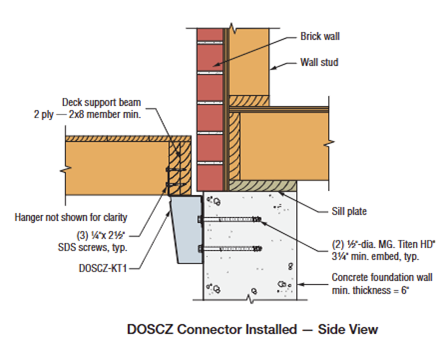

The DOSCZ-KT1 is a connector kit used to attach a deck beam to a concrete wall with a gap to allow for drainage.
FEATURES & BENEFITS
Components designed with finishes that resist corrosion in exterior environments
Designed with predrilled holes for anchoring into the beam and into the concrete
Integrated ledge to support the beam while maintaining a consistent offset
Provides offset gap for water flow and debris off a structure/deck without the need to penetrate the building envelope
Eliminates the need to apply a water seal
Improves longevity of structural components by minimizing water trapping
OTHER INFORMATION
Product Includes

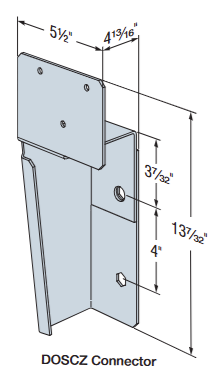

(1) DOSCZ connector
(3) SDS25212 Strong-Drive Heavy-Duty Connector screws
(2) Titen HD® mechanically galvanized heavy-duty screw anchors
